| ENGINE – GENERATOR SET DATA |

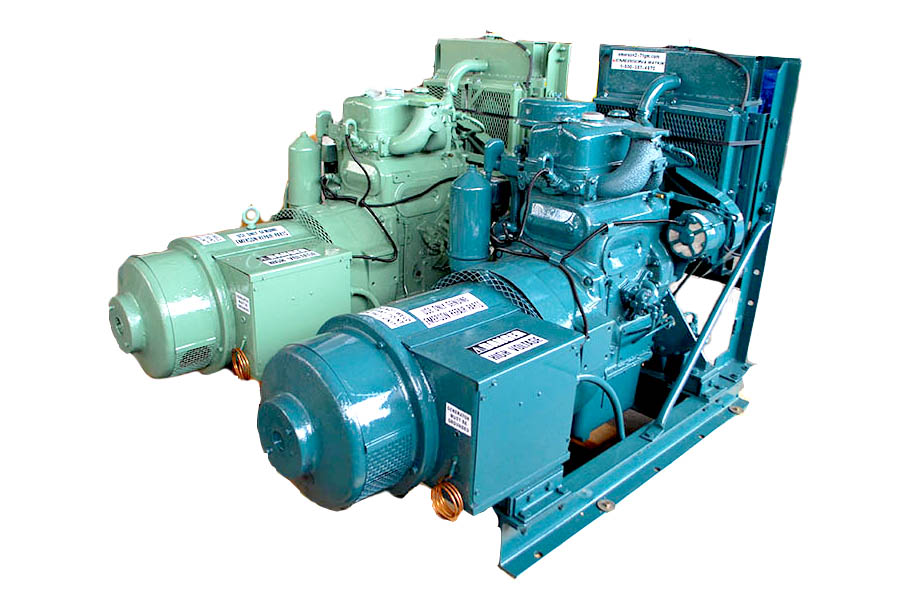

ENGINE-GENERATOR SET DATA (QUICK SPECS)
ENGINE: SERIES 2-71 MODEL 2046
ENGINE GENERATOR SET WEIGHT: 1950 LBS.
SPEED: HIGH 1200 RPM
GOVERNOR MODEL: #5132691 – MECHANICAL (TWO SPEED)
INJECTORS: N60 – Timing – 1.460″ HV6 – TIMING 1,484″
TOTAL OIL CAPACITY: 22 QUARTS (INCLUDING FILTERS)
CRANKCASE OIL CAPACITY: 20 QUARTS
CRANKCASE OIL CAPACITY AT ADD LEVEL: 12 QUARTS
OIL PRESSURE PSIG: MAX. COLD 60 – MIN. HOT 18
OIL FILTER ELEMENT: 20014 ED
PRIMARY FUEL FILTER ELEMENT: 20027 ED
SECONDARY FUEL FILTER ELEMENT: 20029 ED
AIR CLEANER ELEMENT: 60107 ED
COOLING SYSTEM CAPACITY: 18 QUARTS
COOLANT: 50% WATER 50% ETHYLENE GLYCOL BASE ANTIFREEZE
RADIATOR PRESSURE CAP: 7 PSI AC 60181 ED
FAN BELT: 60128 ED
OIL PRESSURE SWITCH SHUTDOWN SETTING: 6 PSIG, MIN.
WATER TEMP. SWITCH SHUTDOWN SETTING: 212 0F +/- 5 0F
OIL PRESSURE SWITCH: 60151 ED
WATER TEMPERATURE SWITCH: 60143 ED
12.5 KW – ALTERNATOR
MODEL: DELCO 3E-5891-M3
ALTERNATOR WEIGHT: 655 LBS.
RATING IN KW AT 0.8 PF @ 60 HZ: 12.5 KW
RATING IN KW AT 0.8 PF @ 40 HZ: 8.0 KW
NO LOAD VOLTAGE @ 60 HZ: 238 VOLTS @ 1240 RPM
FULL LOAD VOLTAGE @ 60 HZ: 230 VOLTS @ 1200 RPM
NO LOAD VOLTAGE @ 40 HZ: 165 VOLTS @ 840 RPM
FULL LOAD VOLTAGE @ 40 HZ: 155 VOLTS @ 800 RPM
CLASS OF WINDING INSULATION: CLASS A STATOR CLASS B FIELD
20 KW – ALTERNATOR
MODEL: DELCO 2E-5399
ALTERNATOR WEIGHT: 675 LBS.
RATING IN KW AT 0.8 PF @ 60 HZ: 20 KW
NO LOAD VOLTAGE @ 60HZ: 245 VOLTS @ 1240 RPM
FULL LOAD VOLTAGE @ 60 HZ: 230 VOLTS @ 1200 RPM
CLASS OF WINDING INSULATION: CLASS A STATOR CLASS B FIELD
NOISE DECIBEL RATING
AT 3 FEET = 100 DB
AT 10 FEET = 90 DB
DIMENSIONS
HEIGHT – 48″ (Top of radiator cap)
WIDTH – 31″ Wide
LENGTH – 66″ Long
